Gold is an extremely important material for high-pressure experiments and is considered the “gold standard” for calculating pressure in static diamond anvil cell experiments. When compressed slowly at room temperature (on the order of seconds to minutes), gold prefers to be the face-centered cubic (fcc) structure at pressures up to three times the center of the Earth.
However, researchers from Lawrence Livermore National Laboratory (LLNL) and the Carnegie Institution of Washington have found that when gold is compressed rapidly over nanoseconds (1 billionth of a second), the increase in pressure and temperature changes the crystalline structure to a new phase of gold. This well-known body-centered cubic (bcc) structure morphs to a more open crystal structure than the fcc structure. These results were published recently in Physical Review Letters.
“We discovered a new structure in gold that exists at extreme states—two thirds of the pressure found at the center of Earth,” said lead author Richard Briggs, a postdoctoral researcher at LLNL. “The new structure actually has less efficient packing at higher pressures than the starting structure, which was surprising considering the vast amount of theoretical predictions that pointed to more tightly packed structures that should exist.”
The experiments were carried out at the Dynamic Compression Sector (DCS) at the Advanced Photon Source, Argonne National Laboratory. DCS is the first synchrotron X-ray facility dedicated to dynamic compression science. These user experiments were some of the first conducted on hutch-C, the dedicated high energy laser station of DCS. Gold was the ideal subject to study due to its high-Z (providing a strong X-ray scattering signal) and relatively unexplored phase diagram at high temperatures.
The team found that that the structure of gold began to change at a pressure of 220 GPa (2.2 million times Earth’s atmospheric pressure) and started to melt when compressed beyond 250 GPa.
Find your dream job in the space industry. Check our Space Job Board »
“The observation of liquid gold at 330 GPa is astonishing,” Briggs said. “This is the pressure at the center of the Earth and is more than 300 GPa higher than previous measurements of liquid gold at high pressure.”
The transition from fcc to bcc structure is perhaps one of the most studied phase transitions due to its importance in the manufacturing of steel, where high temperatures or stress causes a change in structure between the two fcc/bcc structures. However, it is not known what phase transition mechanism is responsible. The research team’s results show that gold undergoes the same phase transition before it melts, as a consequence of both pressure and temperature, and future experiments focusing on the mechanism of the transition can help clarify key details of this important transition for manufacturing strong steels.
“Many of the theoretical models of gold that are used to understand the high-pressure/high-temperature behavior did not predict the formation of a body-centered structure—only two out of more than 10 published works,” Briggs said. “Our results can help theorists improve their models of elements under extreme compression and look toward using those new models to examine the effects of chemical bonding to aid the development of new materials that can be formed at extreme states.”
More information: R. Briggs et al. Measurement of Body-Centered Cubic Gold and Melting under Shock Compression. Physical Review Letters(2019). DOI: 10.1103/PhysRevLett.123.045701

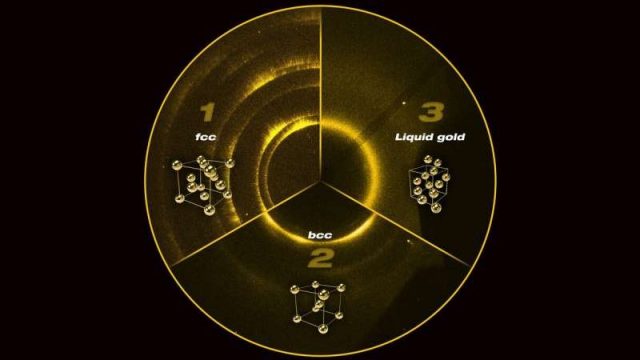

Image: Three of the images collected at Argonne National Laboratory’s Dynamic Compression Sector, highlighting diffracted signals recorded on the X-ray detector. Section 1 shows the starting face-centered cubic structure; Section 2 shows the new body-centered cubic structure at 220 GPa; and Section 3 shows the liquid gold at 330 GPa. Credit: Lawrence Livermore National Laboratory
